Cable Terminal Ends(Lugs)

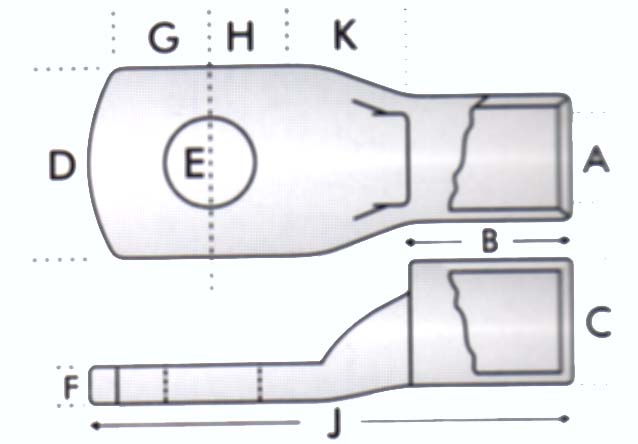

Tinned Copper Cable Terminal Ends(Lugs)




MATERIAL :
High conductivity seamless copper tube to BS 2874 - C 101 ASTM B 152 - C 1100.- Electrolytic copper to BS 1977

FEATURES : ~ Provided with inspection window, thus ensuring full conductor insertion.
~ Entrance chamfered to facilitate smooth and easy entry.
~ High wall thickness giving termination excellent electrical and mechanical properties.
~ Simple installation with readily available tools.

FINISH : Uniformly Electro-tin plated for operating temperatures upto 1500 C. For operating temperatures above 1500 C upto 3500 C Electrolytic nickel plated is suggested.




Tinned Copper In-Line Connectors

MATERIAL :
High conductivity seamless copper tube to BS 2874 - C 101.

FEATURES : Connectors are provided with a dimple which acts as a conductor stop and ensures that conductors are inserted equally before crimping.

FINISH : Uniformly Electro-tin plated for operating temperatures upto 1500 C. Also
available in Electrolytic Nickel plated for the connectors operating upto 350 C.





Tinned Copper Long Palm/Two Hole Terminelends

DESCRIPTION : .
Used when Cable run falls short or where the system is continuously under vibrations.
MATERIAL : .
High Conductivity copper tube to BS 2874 - C 101.
FINISH : .
Uniformly Electro-tin plated.









Tinned Copper Cable Terminal Ends


FOR TRANSFORMER - 4 HOLE LUGS

MATERIAL : High conductivity seamless copper tube to BS 2874 -C 101. .

FINISH : Uniformly Electro-tin plated. Also available in electrolytic Nickel plated for operating temperatures upto 350 C.








Tinned Copper weak Back Ferrules

MATERIAL : .
High Conductivity copper tube to BS 2874 - C 101.

FINISH : .
Uniformly Electro-tin plated.









Soldering Type Tubular Lugs


MATERIAL :
High conductivity seamless copper tube to BS 2874 -C 101. .

FINISH : Uniformly Electro-tin plated. Also available in electrolytic Nickel plated for operating temperatures upto 3500 C.









Aluminium Ferrules For Aluminium Xlpe Conductors



MATERIAL : High conductivity Aluminium.
FINISH : Surface passivated or Tin plated.
RATING : 33KV. .
FEATURES : Connectors bores are perfilled with oxide inhibiting compound and capped at both ends.










Aluminium Terminal ends For Al-Xlpe Conductors

MATERIAL :High conductivity seamless Aluminum tube. .
FINISH : Surface passivated or Tin plated. .
RATING :33KV. Lug barrel is pre filled with oxide inhibiting compound and capped at the barrel end.
